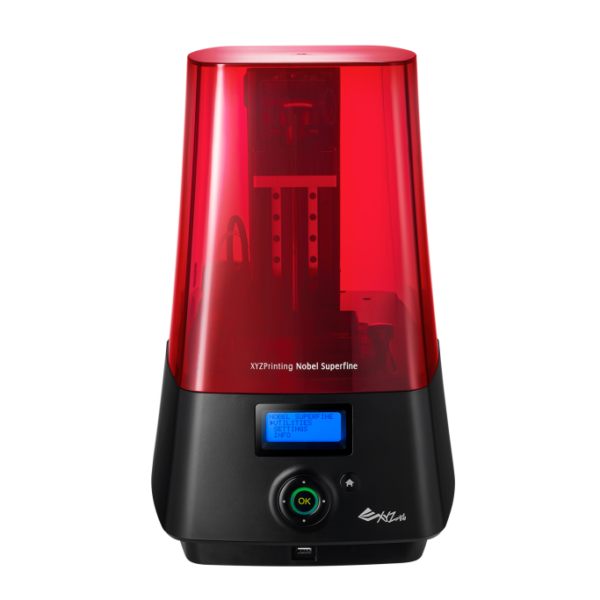

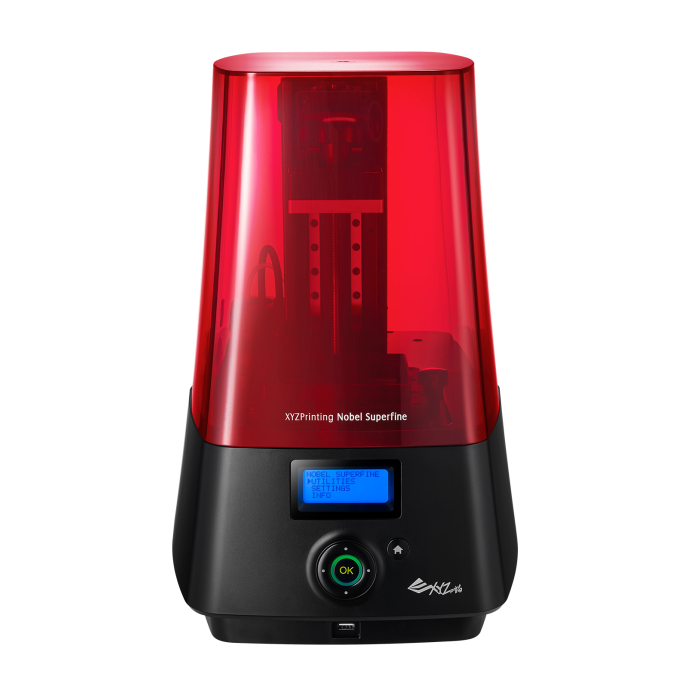

NOBEL SUPERFINE

360,499.00

Create highly intricate objects with our top of the line DLP printer. Nobel superfine is a preferred choice by the likes of jewellery designers, to generate high-quality objects with the required precision. Designers can create custom designs using the castable resins for individual clients within a short period of time.

FEATURES
  •  High-Resolution Printer – DLP Technology
  •  Compatible with wide variety of resins including acrylic and castable resins
  •  UV LED – 405nm
  •  Supports 3rd party resins
  •  Cost Effective Solution for Designers
  •  Plug and Play printer with USB input
  •  Product Shell protects user from UV rays
  •  Free XYZmaker – 3D Design Software, XYZware – 3D Printing Software

Out of stock

Category:

PERFORMANCE PARAMETERS

Print TechnologyDLP
Max. Build Area (WxDxH)64 x 40 x 120 mm
Layer Resolution25 / 50 / 100 microns
X-Y Resolution50 microns
Light SourceUV LED λ 405nm
Printing SoftwareXYZware_VPD
Supported File Formats.stl , XYZ Format (.3ws, .3wn)
Material CompatibilityStandard Resin (Purple, Clear, Grey) / Castable Resin / Rigid Resin
Support 3rd Party MaterialYES
User Interface2.6” FSTN LCM
LanguageMultilingual
ConnectivityUSB 2.0 Cable, USB Flash Drive, Ethernet
Operating SystemsWindows 7 / 8 / 8.1 / 10
macOS 10.10 / 10.11 / 10.12 / 10.13
Minimum Hardware RequirementsFor PC
Recommended HardwareFor PC
For MacRAM
Power Requirements100V ~ 240V 60W
Operating Temperature20 ~ 30 °C
Operation Humidity40 ~ 60 % RH (no condensation)
Storage Temperature-Resin10 ~ 32°C
Product Dimensions (WxDxH)290 x 357 x 427 mm
Product Weight11 kg
Packed Dimensions (WxDxH)500 x 395 x 580 mm
Packed Weight14 kg
3d Printer Brand

Country of Origin

China
